Bitmain Antminer L9



ASIC Model series:	ASIC Release:	Hashrate:	ASIC Power:		ASIC Algo:
Bitmain Antminer L9	May 2024	16Gh/s	3360W		Scrypt
Bitmain Antminer L9	May 2024	17Gh/s	3570W		Scrypt
Bitmain Antminer L9 Hyd 2U	Nov 2025	27Gh/s	5670W		Scrypt

Modified ASIC Firmware for Antminer L9 series
(25-30% improvement) download here



ASIC Bitmain Antminer L9 Series

The Bitmain Antminer L9 series is a high-performance generation of Scrypt ASIC miners designed for professional Litecoin and Dogecoin mining. Positioned below the L11 but significantly more powerful than older L7 models, the L9 series quickly became popular among miners looking for a balance between efficiency, price, and operational flexibility.

Unlike purely enterprise-focused miners, the L9 lineup includes both classic air-cooled units and a rack-mounted hydro-cooled variant, making it suitable for a wide range of environments—from home-based mining with heat reuse to industrial mining housing facilities.

The Antminer L9 family consists of the following main versions:

• Antminer L9 (16 GH/s)

• Antminer L9 (17 GH/s)

• Antminer L9 Hyd 2U

Scrypt Algorithm for ASIC

All models in the Antminer L9 series mine using the Scrypt algorithm, which is most commonly associated with Litecoin and Dogecoin merge mining. Unlike SHA-256, Scrypt is more memory-intensive and historically produced less extreme hashrate growth, resulting in more stable difficulty over time.

In practice, nearly all Antminer L9 units are used for merged mining, where Litecoin and Dogecoin are mined simultaneously. This significantly improves revenue stability because Dogecoin block rewards provide a strong secondary income stream without increasing power consumption.

The most common cryptocurrencies mined with the L9 series include:

• Litecoin (LTC)

• Dogecoin (DOGE) (merge-mined)

• Digibyte (DGB – Scrypt)

• Other smaller Scrypt-based networks

Scrypt Difficulty Antminer ASICs

Scrypt mining difficulty evolves more gradually than Bitcoin difficulty, but it still responds to increased network hashrate and new ASIC releases. The L9 series was engineered to remain competitive even as more powerful miners entered the market.

Because Scrypt rewards are heavily influenced by Dogecoin market cycles, profitability can fluctuate more based on price movements than pure hashrate growth. This makes power efficiency and operational cost control especially important for L9 operators.

ASIC Antminer L9 Models

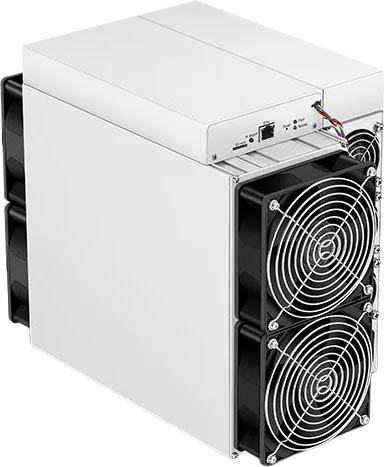

ASIC Bitmain Antminer L9 (16 GH/s)

The ASIC Bitmain Antminer L9 16 GH/s is the lower-power version of the air-cooled model. It is often chosen by miners who want to operate in residential or semi-professional environments where electrical capacity and noise management are important factors.

This version delivers strong Scrypt performance while maintaining manageable heat output compared to higher-end models.

Bitmain Antminer L9

Typical specifications include:

• Algorithm: Scrypt

• Hashrate: ~16 GH/s

• Power Consumption: ~3,200–3,300 W

• Energy Efficiency: ~0.20–0.21 J/MH

• Cooling: Air-cooled

• Release period: 2024

ASIC Bitmain Antminer L9 (17 GH/s)

The Antminer L9 17 GH/s is a higher-performance bin of the same platform. It offers increased output at slightly higher power draw and is commonly deployed in professional mining facilities.

This version is preferred where infrastructure allows for higher sustained loads and where electricity pricing supports the increased consumption.

Its technical profile typically includes:

• Algorithm: Scrypt

• Hashrate: ~17 GH/s

• Power Consumption: ~3,400–3,500 W

• Energy Efficiency: ~0.20 J/MH

• Cooling: Air-cooled

• Release period: 2024

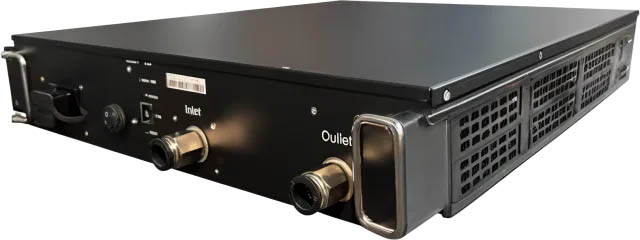

Hydro-Cooled Model – Antminer L9 Hyd 2U

The ASIC Bitmain Antminer L9 Hyd 2U is designed for rack-mounted, data-center-style mining operations. By using liquid cooling, this model eliminates high-speed fans and allows much higher thermal stability and density.

This version is typically deployed in mining housings or private data centers with centralized water cooling infrastructure.

Antminer L9 Hyd 2U

Typical specifications include:

• Algorithm: Scrypt

• Hashrate: ~30–32 GH/s

• Power Consumption: ~6,200–6,500 W

• Energy Efficiency: ~0.19–0.20 J/MH

• Cooling: Hydro

• Form factor: 2U rack-mount

• Release period: 2025

Mining Pools for ASIC Bitmain Antminer L9

Because Scrypt mining difficulty is high, Antminer L9 units are almost always connected to mining pools. Pool mining provides predictable payouts and reduces reward variance.

The most commonly used pools include:

• AntPool

• ViaBTC

• F2Pool

• LitecoinPool.org

• ProHashing

Electricity Costs and Mining Housing Prices ASIC Bitmain L9

Electricity price is the single most important factor determining profitability for the Antminer L9 series. Because Scrypt ASICs consume several kilowatts continuously, even small differences in power price have a major impact on ROI.

Mining housing facilities typically offer electricity pricing based on region and infrastructure quality.

Common electricity price ranges in mining housings include:

• Low-cost regions: ~0.04–0.06 USD/kWh

• Standard European housing: ~0.08–0.12 USD/kWh

• Premium data-center housing: ~0.12–0.15 USD/kWh

In higher-cost regions, profitability can still be achieved through heat reuse or immersion cooling.

Cost Optimization ASIC L9

Operators running Antminer L9 units often focus on optimization strategies rather than raw hashrate increases. Because the L9 series supports firmware tuning, miners can reduce power draw while maintaining acceptable output.

Common optimization approaches include:

• Undervolting and frequency tuning

• Improved airflow or ducting

• Immersion cooling retrofits

• Strategic downtime during low profitability periods

Using ASIC Antminer L9 for Heating Homes and Pools

One of the unique advantages of air-cooled Antminer L9 models is their ability to repurpose waste heat. Nearly 100% of consumed electricity is converted into heat, making these miners effective electric heaters.

In residential setups, Antminer L9 units are often used for:

• Home heating during winter

• Garage or workshop heating

• Greenhouse temperature control

With proper heat exchangers, hydro models can also be used to:

• Heat swimming pools

• Support underfloor heating systems

• Preheat domestic hot water

This heat reuse can significantly reduce effective electricity cost.

Current Market Status ASIC Bitmain Antminer L9

The ASIC Antminer L9 series is considered a mature and proven Scrypt mining platform. It sits between older ASIC Bitmain L7 units and newer L11 miners, offering a strong balance of price and performance.

Second-hand units are commonly available, while hydro versions are mostly used in professional environments.

Profitability and ROI Expectations ASIC Bitmain Antminer L9

ROI for the ASIC Bitmain Antminer L9 series depends on electricity price, Dogecoin rewards, and hardware acquisition cost.

General trends include:

• Faster ROI in low-power-cost regions

• Stable income due to DOGE merge mining

• Extended lifespan when heat is reused

In optimized setups, ROI is often achieved within 12–24 months.

User Experience and Reliability ASIC Bitmain Antminer L9

User feedback on the L9 series is generally positive, especially regarding stability and ease of operation.

Common user observations include:

• Consistent hashrate over long periods

• Manageable noise compared to older Scrypt ASICs

• High heat output suitable for reuse

• Good availability of spare parts

Common Failures L9 ASICs

As with all ASIC miners, certain components are more prone to wear.

The most common issues reported include:

• Fan degradation on air-cooled models

• Hashboard thermal stress

• PSU aging

• Connector wear in high-humidity environments

Overall, the ASIC L9 series is considered reliable and serviceable, with good repair support.

Is the ASIC Antminer L9 Series Worth It?

The Bitmain Antminer L9 series remains an excellent choice for Scrypt mining, especially for miners who want flexibility. Its combination of air and hydro models, strong efficiency, and suitability for heat reuse makes it one of the most versatile Scrypt ASIC generations.

For miners with low electricity costs or the ability to reuse heat, the L9 series continues to offer solid long-term profitability.
