Innosilicon A10, A11 ASIC for ETHash

ASIC Model series:	ASIC Release:	Hashrate:	ASIC Power:		ASIC Algo:
Innosilicon A11 Pro ETH	Nov 2021	1.5 Gh/s	2350 W		EtHash
Innosilicon A10 Pro+ ETH	Dec 2020	750 Mh/s	1350 W		EtHash
Innosilicon A10 Pro ETH	May 2020	500 Mh/s	960 W		EtHash
Innosilicon A10 ETHMaster	Sep 2019	500 Mh/s	750 W		EtHash

Modified ASIC Firmware Innosilicon ASIC miners Ethash
(15-25% improvement) download here

In modern cryptocurrency mining, ASIC mining represents the most advanced and specialized approach to achieving maximum performance and efficiency. Over the years, many algorithms that originally favored GPUs have gradually shifted toward ASIC dominance. One of the most important examples of this transition is the EtHash algorithm, historically linked to Ethereum and later primarily to Ethereum Classic and other EtHash-based networks.

To address the technical challenges of EtHash, Innosilicon ASIC miners such as A10 ETHMaster, A10 Pro, A10 Pro+, and A11 Pro were engineered as memory-intensive ASIC solutions. These miners combine specialized hashing chips with large amounts of high-speed memory, which fundamentally differentiates them from most other ASIC designs.

This article delivers a deep, SEO-optimized analysis of ASIC miners Innosilicon A10 and A11, expanding beyond specifications into real user experiences, common hardware failures, and frequently discussed issues on forums and social media. Compared to previous articles, this one intentionally goes further into the everyday realities of operating EtHash ASIC hardware.

EtHash Algorithm

The EtHash algorithm was originally designed to be resistant to ASICs by relying heavily on memory access rather than raw computational power. This design choice aimed to ensure fairer mining by keeping GPUs competitive for as long as possible. However, advances in semiconductor manufacturing eventually made EtHash ASIC mining economically viable.

Key characteristics of EtHash that directly affect ASIC miners include:

• High memory bandwidth requirements, which make memory quality and cooling critical

• Large DAG files, which increase over time and require sufficient onboard memory

• Lower hash complexity, shifting performance bottlenecks toward memory rather than logic

• High sensitivity to thermal instability, especially on memory chips

Each of these factors plays a central role in how Innosilicon ASIC miners perform in long-term operation, especially under continuous 24/7 mining conditions.

EtHash ASIC Mining and Innosilicon

Before ASICs, EtHash was almost exclusively mined with GPUs. As profitability increased, manufacturers began experimenting with dedicated hardware. Innosilicon was among the first companies to succeed in this space by launching the A10 ETHMaster, effectively proving that ASIC mining on EtHash was not only possible but highly efficient.

Over multiple generations, Innosilicon refined its designs by increasing memory capacity, improving cooling layouts, and optimizing power efficiency. This iterative development was driven largely by user feedback from early adopters, who reported thermal and memory-related issues that required engineering improvements.

Innosilicon ASIC Miners for EtHash

The Innosilicon A10 and A11 ASIC series is designed for miners who require predictable performance and higher efficiency than GPU rigs. These ASIC miners are typically deployed in professional or semi-professional environments where stable electricity and cooling are available.

At the same time, community discussions frequently point out that EtHash ASICs are less forgiving than other ASIC types. Because performance depends heavily on memory stability, long-term success requires careful maintenance, proper firmware configuration, and proactive thermal management.

Innosilicon A10 ETHMaster: First-Generation EtHash ASIC

ASIC Innosilicon ETHMaster

• Algorithm: EtHash

• Hash Rate: ~485–500 MH/s

• Power Consumption: ~750 W

• Memory: 5–6 GB GDDR6 (model-dependent)

• Efficiency: ~1.5 W/MH

• Cooling: Dual high-speed fans

• Release Era: Early EtHash ASIC adoption

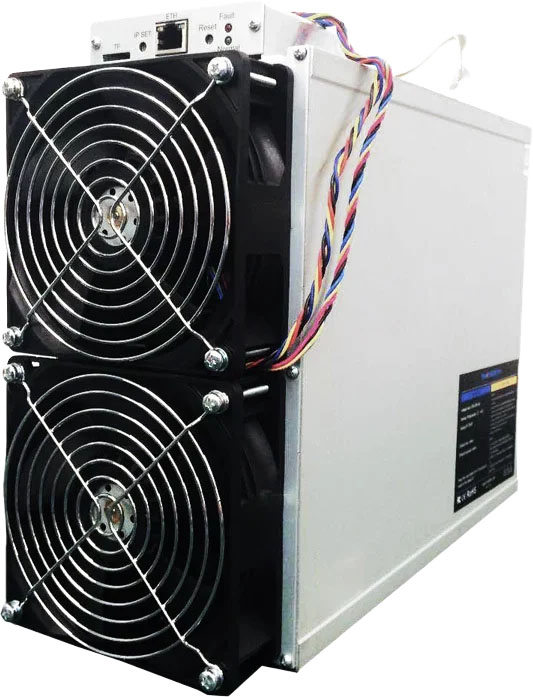

Innosilicon ETH Master - ASIC for ETH

The A10 ETHMaster marked a turning point in ASIC mining, demonstrating that EtHash could be mined efficiently with specialized hardware. Its relatively low power consumption compared to GPUs was widely praised at launch.

User Experiences and Known Issues

• Users frequently highlight the excellent efficiency at release, especially compared to GPU rigs available at the time. This made the A10 ETHMaster extremely popular during its early lifecycle.

• Over time, many miners reported memory degradation, which manifests as reduced hash rate, instability, or frequent restarts. This issue is commonly discussed on forums as a result of prolonged high-temperature operation.

• Another recurring issue is DAG size limitations, which eventually rendered early versions obsolete as the EtHash DAG grew beyond supported memory.

• Fan wear and noise increase over time are also commonly mentioned, particularly in dusty or high-temperature environments.

Despite these drawbacks, the A10 ETHMaster remains widely respected as a foundational product in EtHash ASIC history.

Innosilicon A10 Pro: Improved Stability and Performance

ASIC Innosilicon A10 Pro

• Algorithm: EtHash

• Hash Rate: ~720–750 MH/s

• Power Consumption: ~950 W

• Memory: 6 GB GDDR6

• Efficiency: ~1.3 W/MH

• Cooling: Enhanced airflow system

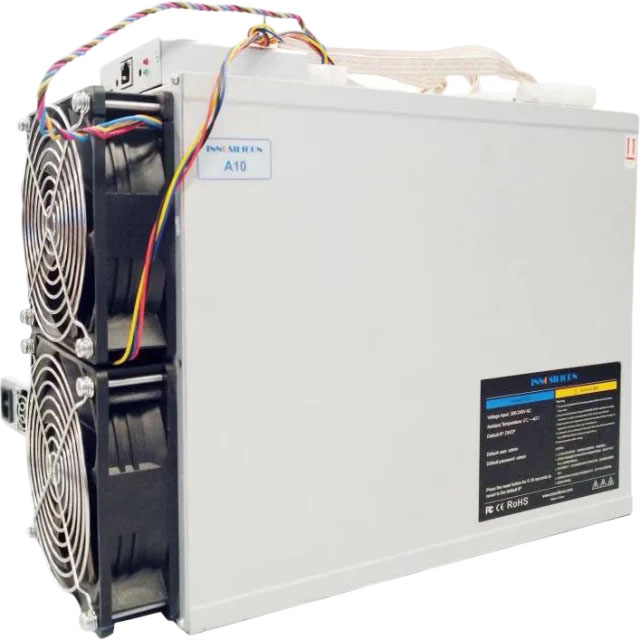

Innosilicon A10 Pro - ASIC for ETH

The A10 Pro was designed to address many of the shortcomings identified in the ETHMaster. Improved cooling and better memory management allowed it to operate more reliably under continuous load.

What Users Say

• Miners often report greater stability compared to the ETHMaster, especially during long uninterrupted mining sessions.

• The thermal design is frequently praised, but many users note that ambient temperature still plays a major role in performance.

• Discussions on forums often mention power supply sensitivity, with unstable PSUs causing hash rate fluctuations or sudden shutdowns.

• Memory overheating remains a topic, especially in poorly ventilated mining locations.

Overall, the A10 Pro is widely viewed as a solid balance between performance, efficiency, and reliability in ASIC mining.

Innosilicon A10 Pro+: High-Performance EtHash ASIC

ASIC Innosilicon A10 Pro+

• Algorithm: EtHash

• Hash Rate: ~1.2–1.3 GH/s

• Power Consumption: ~1300 W

• Memory: 7–8 GB GDDR6

• Efficiency: ~1.0–1.1 W/MH

• Target Use: Professional ASIC mining farms

The A10 Pro+ pushed EtHash ASIC performance to a new level, offering significantly higher hash rates while maintaining competitive efficiency.

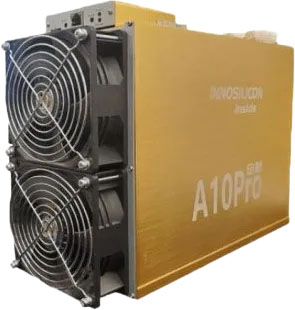

Innosilicon A10 Pro+ - ASIC for ETH

Forum and Social Media Feedback

• Users consistently praise the hashrate density, particularly for Ethereum Classic mining.

• Many reports highlight excellent profitability during favorable market conditions.

• At the same time, forums frequently discuss memory module failures after extended periods of high-temperature operation.

• Telegram and Discord communities often share guides on replacing thermal pads, improving airflow, and underclocking memory to extend hardware lifespan.

The consensus is that the A10 Pro+ delivers exceptional performance but demands careful thermal management.

Innosilicon A11 Pro: Next-Generation EtHash ASIC Miner

ASIC Innosilicon A11 Pro

• Algorithm: EtHash

• Hash Rate: ~1.5–2.0 GH/s

• Power Consumption: ~2350 W

• Memory: 8+ GB GDDR6

• Efficiency: ~1.2 W/MH

• Cooling: Industrial-grade multi-fan system

The A11 Pro represents the peak of Innosilicon’s EtHash ASIC development, offering massive computational power within a single unit.

Innosilicon A11- ASIC for ETH

Real-World Experience ASIC Innosilicon

• Users describe the A11 Pro as extremely powerful but also thermally demanding, requiring industrial-grade cooling solutions.

• Noise levels are a frequent topic of discussion, making this ASIC unsuitable for residential environments.

• Forum threads emphasize the importance of stable electrical infrastructure, as power fluctuations can cause severe instability.

For professional operations, the A11 Pro is considered a top-tier ASIC mining solution when properly supported.

ASIC Innosilicon EtHash Miners

This comparison is frequently referenced in community discussions when miners evaluate upgrade paths or secondary-market purchases.

What Miners Discuss Most on Forums and Social Networks

• Memory overheating is one of the most discussed topics, with many users sharing thermal imaging results and cooling modifications.

• Replacing fans and thermal pads is considered routine maintenance rather than an exception.

• Firmware downgrades or custom firmware configurations are often recommended to improve stability.

• Power supply compatibility and cable quality are frequently cited as overlooked causes of miner failure.

• Hash rate degradation over time is a recurring concern, especially for older A10 models.

These discussions highlight that ASIC mining with EtHash requires more active management than many other ASIC algorithms.

Optimized Firmware and ASIC Mining Tweaks

Innosilicon Firmware Benefits

• Custom firmware can reduce memory voltage, which directly lowers operating temperatures and improves long-term stability.

• Many users report smoother hash rate behavior and fewer crashes after firmware optimization.

• Power consumption can be slightly reduced, improving overall mining efficiency.

• Controlled fan curves help balance noise levels with adequate cooling.

Community Recommendations for Innosilicon ASIC

• Conservative underclocking is often advised to protect memory modules.

• Avoiding maximum factory presets is a common recommendation from experienced miners.

• Continuous temperature monitoring is considered essential for EtHash ASICs.

These practices are widely shared in mining communities and are regarded as best practices rather than optional tweaks.

Innosilicon ASIC Firmware download

ASIC mining with EtHash using Innosilicon A10 and A11 series miners offers unmatched performance compared to GPUs, but it comes with higher operational demands. User experiences consistently show that while these ASIC miners are powerful and efficient, they require disciplined thermal management, stable power delivery, and careful firmware tuning.

For miners willing to invest in proper infrastructure and maintenance, Innosilicon EtHash ASIC miners remain among the most capable and productive tools in the ASIC mining ecosystem.
